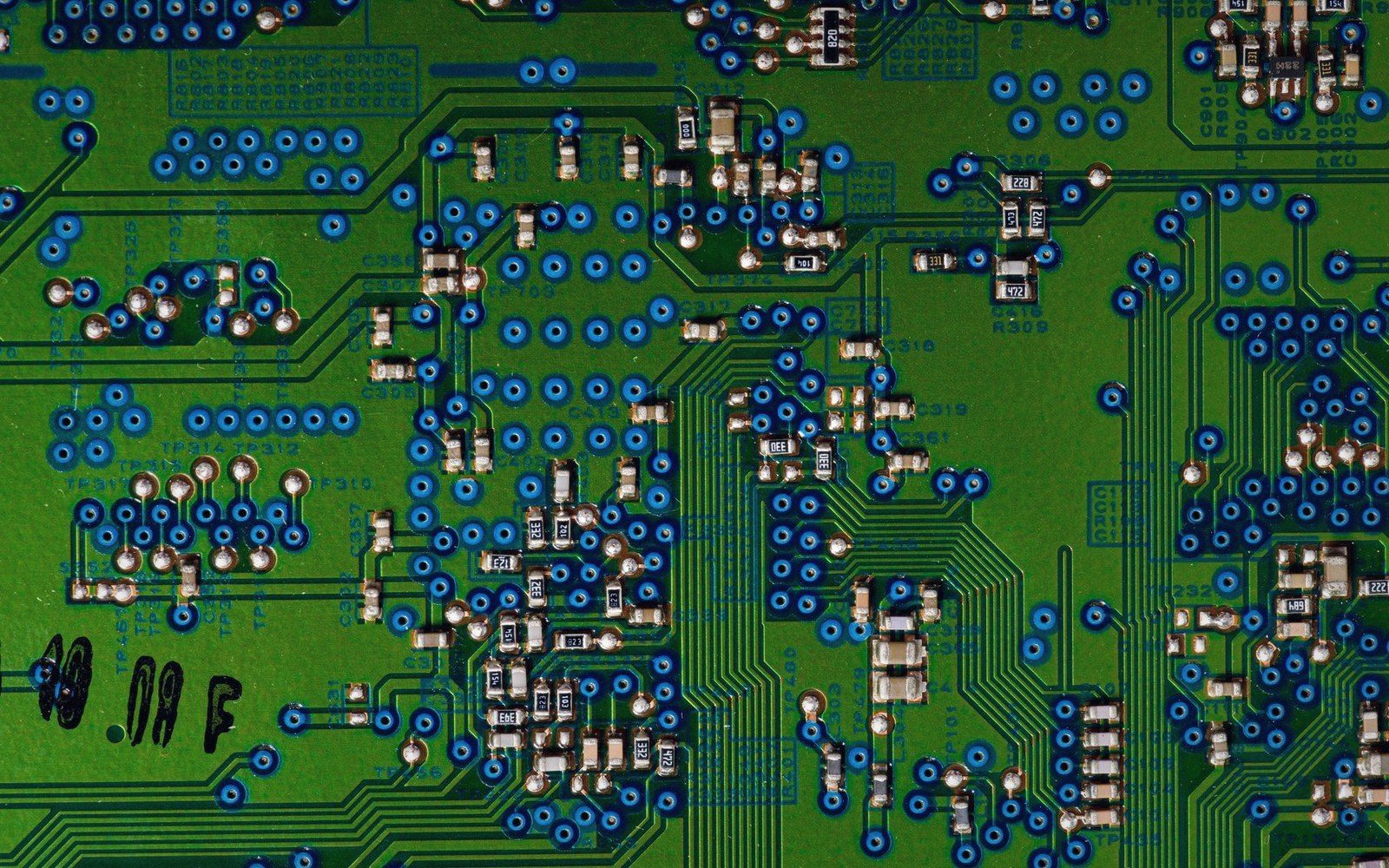

Photo: Júlio Riccó / Pexels
- The ceiling
- No recordings — only oscillators, noise and envelopes
- What imposed it
- Cost: a drum had to be built from parts rather than stored
- What it produced
- Percussion that stands in for drums instead of copying them
A snare drum makes its sound in two places at once: the top head vibrates when struck, and a set of wire snares on the underside buzzes sympathetically, all of this decaying into the air in under a second. A recording captures that event. An analogue drum voice does something different. It describes the event using components that have no acoustic memory of it — oscillators that have never been near a drum kit, noise generators that know nothing about wire, envelopes that are simply voltage curves waiting for a trigger. The result is not a reproduction. It is a claim: this is what a drum is, reduced to elements a circuit can manage.
That claim turns out to be more powerful than it sounds. The machines that emerged from it — the Roland TR-808 and TR-909, the Linn LM-1, the Oberheim DMX — defined the sound of popular music for decades, not despite their inaccuracy but partly because of it. The circuit's description of a drum is always a simplification, and simplifications have character.
- Oscillatorgenerates a pitched tone; in drum synthesis, typically a sine wave tuned to approximate the fundamental resonance of a drum body, often swept in pitch on trigger
- Noise generatorproduces a broadband, unpitched signal; used to approximate inharmonic transients, wire snares and metallic cymbal noise
- Envelopea voltage curve triggered by each drum hit; its attack and decay times determine how a sound hits and how long it lasts
- Bridged-T oscillatora resonant filter/oscillator topology used in the TR-808 kick circuit that allows the circuit to ring (oscillate) after a trigger, producing the 808's characteristic long-decay tone
- High-pass filterremoves low frequencies from noise; used on hi-hat voices to remove sub-bass content and give the sound its metallic sheen
- Bandpass filterpasses a defined frequency range; used to colour noise in snare voices, giving it pitch-adjacent texture
Three raw materials
Analogue drum synthesis draws on three basic sources: sine-wave oscillators, noise generators, and envelopes. Almost every voice in every analogue drum machine is some combination of these three things in varying proportions and configurations. Understanding what each one stands in for gets you most of the way to understanding why these machines sound the way they do.
Oscillators handle the pitched component of a drum. A kick drum, when you look at it on a spectrum analyser, shows a clear low-frequency fundamental — the thump that comes from the beater hitting the head and the body of the drum resonating at a characteristic frequency. A sine oscillator approximates this well: it produces a single clean frequency with no harmonics, which is close to what a kick drum actually does in its sustain phase. The classic extension of this is to sweep the oscillator's pitch downward very rapidly on trigger — starting high and falling to the resting frequency in a few milliseconds. This mimics the way a drum head slaps under the beater before settling. In the TR-808's bass drum circuit, this pitch sweep is produced by a capacitor charging to a voltage that controls the oscillator's frequency, then discharging over a short time. The shape of that capacitor's discharge curve is the shape of the pitch envelope, and it is as physical and specific as any component value.
Noise handles the unpitched, broadband energy that most drums contain. A snare drum's body resonates at a pitch, but the wire snares produce a dense, fast-decaying hiss that sits on top of it. A hi-hat is almost nothing but noise — its sound comes from the irregular vibration of two metal discs, which generates a complex, inharmonic, essentially unpitched signal. A white noise generator, which outputs all frequencies at equal amplitude, is the circuit's way of approximating these things. In practice, the noise is almost always filtered — high-pass to remove low rumble for hi-hats, bandpass to colour the noise for snares — because raw white noise sounds like static, and drums are more specific than that. What the filter does to the noise is as consequential as the noise source itself.
Envelopes govern time. A drum sound's entire character lives in its attack and decay: how fast it hits and how quickly it fades. In an analogue drum voice, a trigger pulse initiates an envelope that sweeps from a peak voltage down toward zero, and that voltage controls the amplitude of whatever oscillator or noise source is feeding into the output. A very fast attack and a short decay gives you a click and a snap. A slower attack blurs the transient and softens the hit. A long decay holds the tail of a kick or the ring of a tom. The envelope's shape is determined by resistor and capacitor values — time constants that are fixed in the hardware and that account for a great deal of why one machine sounds different from another with apparently similar circuits. Changing a single capacitor value in an 808-style kick circuit changes whether the drum sounds like a floor tom or a sub-bass pulse.
The shape of that capacitor's discharge curve is the shape of the pitch envelope, and it is as physical and specific as any component value.
When approximation invents something
The interesting thing about analogue drum synthesis is what happens when the approximation fails on its own terms and produces something that has no acoustic precedent. The 808's bass drum is the canonical example. It uses a bridged-T oscillator in a feedback loop that allows the circuit to ring — to oscillate in a damped sinusoidal pattern after the trigger. This is in principle a physical model of a drum head's resonance, but the values chosen, and the character of the specific transistors and op-amps in the circuit, push the result into a register that no acoustic drum occupies: a long, deep, almost musical tone with a pitched sustain that can last well over a second. Real kick drums do not do this. The 808 invented the sound it was trying to describe, and that invention became one of the most replicated sonic objects in recorded music.
The TR-808's hi-hat circuit makes the same kind of productive mistake. Roland's engineers generated the hi-hat sound by combining six square-wave oscillators tuned to specific non-integer frequency ratios. The idea was to approximate the inharmonic metallic noise of a real cymbal by creating a cluster of frequencies that beat against each other. This is not how a cymbal actually works at the physical level, but it produces something recognisably metallic, and with the right high-pass filter and envelope, it reads as a hi-hat. More importantly, it reads as that particular hi-hat — the one that appears at the beginning of thousands of records, identifiable in under a second. The circuit described something it could not accurately render and, in doing so, made a new sound that is now more culturally legible than the real thing it was approximating.
- TR-808 kicksine oscillator with fast pitch sweep; bridged-T resonance; very long decay possible
- TR-808 hi-hatsix square-wave oscillators at non-integer ratios, summed and filtered; no oscillator sweep
- Linn LM-1 snaredigital sample of a real snare drum; no analogue voice circuit
- Component valuesresistor and capacitor choices fix envelope times, filter frequencies and oscillator ranges; changing a single capacitor value can move a kick from punchy to sub-bass
Specificity as character
Because every analogue drum voice is a circuit with fixed component values, each voice is specific in a way that acoustic drums are not. An acoustic snare drum's character changes with the player's touch, the head tension, the room, the microphone. An analogue snare circuit makes the same decisions the same way every time. The envelope has a particular slope. The noise is filtered to a particular colour. The oscillator starts at a particular frequency and decays at a particular rate. None of these are adjustable in most vintage machines — or if they are, the range of adjustment is deliberately narrow.
This specificity is a constraint, and constraints produce identity. The TR-808's rimshot sounds like itself because it cannot sound like anything else. The LM-1 went the other way entirely: its snare is not a circuit at all but a digital sample of a real drum, a route Linn took because analogue synthesis could not capture the crack of a real snare convincingly. That design decision, made in the early 1980s to sidestep an analogue limitation, still produced a sound that became as characteristic as anything on the machines that stayed fully analogue.
The design choices behind any analogue drum voice are also manufacturing choices and cost choices. The number of components in a voice, the range of controls on the panel, the choice of which parameters to expose and which to fix — these all reflect what the machine was expected to cost and who it was expected to be used by. A voice with a single decay knob is not impoverished; it is a statement about what matters most in that sound. The engineers decided that decay time was the dimension most worth handing to the user, and that the filter cutoff, the oscillator frequency, the envelope attack, could all be left at the values that sounded right in the test room. Right by whose ears, in what year, for what genre, against what budget — those are the real parameters that set the component values, and they are written into every drum machine circuit that was ever produced.
The circuit does not record a drum. It argues about what a drum is, in the only language it has: voltage, time, frequency. That argument is always partial, always shaped by context, and almost always more interesting than a straight answer would have been.
