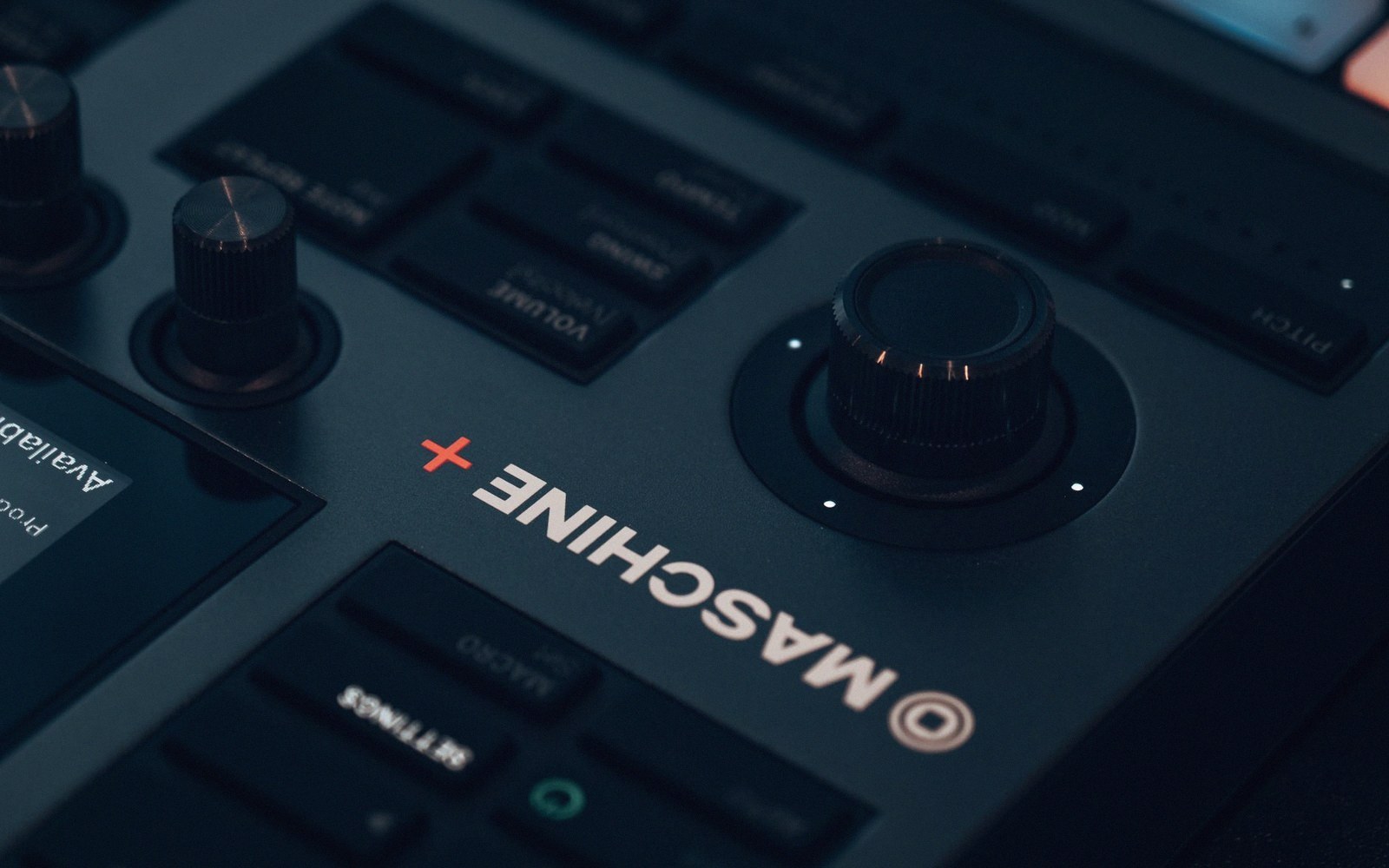

Photo: Egor Komarov / Pexels
A Panel Is an Argument
Every front panel makes a claim about what matters — and the music followed
- The ceiling
- Only what sits on the face can be reached mid-phrase
- What imposed it
- Panel area, the price of a knob, and a decision about who the player is
- What it produced
- One-knob playing on one side of the trade, preset culture on the other
A synthesiser panel is not neutral. Before a note is played, before a patch cable is inserted or a slider moved, the panel has already made decisions: what the instrument rewards, what it discourages, what it treats as central and what it buries. The layout is a theory of music compressed into aluminium, silk-screen ink and the placement of controls. Understanding why a machine sounds the way it does often begins not with the circuit but with the face.
One Knob, One Function
The clearest argument a panel can make is the Minimoog's: one knob does one thing, and every knob is visible at once. Bob Moog and his team arranged the instrument's controls across three angled sections — oscillators left, mixer centre, filter and envelopes right — so that the signal path was legible as physical geography. You could read the instrument's logic without touching it. The filter cutoff knob sat prominent and large because the filter was the point; the envelope controls flanked it because they shaped the filter's behaviour in time. Nothing was hidden. Nothing required a second press to reach.
- Moog modular (1960s)panel as possibility space; no assumed routing; every connection explicit
- Minimoog (1970)one knob per function, signal path as physical left-to-right geography
- Prophet-5 (1978)professional solidity; panel quality signals intended user
- DX7 (1983)menu-driven; depth over access; panel rewards presets over editing
- Juno-106 (1984)signal-flow layout marginalizes chorus despite chorus being definitive
- TB-303binary accent, no fine velocity; sparseness produced a genre
This arrangement encoded a particular idea about performance: that a synthesiser should be played in real time, that the hands should move across parameters as a pianist's move across keys. The Minimoog's panel rewarded improvisation because every control was reachable mid-phrase. It punished patch complexity because there were no patch points — the signal routing was fixed, another argument baked into the hardware. What you gained in immediacy you surrendered in reconfigurability.
The Moog modular systems that preceded it had made the opposite argument. A modular's panel is deliberately non-committal: oscillators, filters and envelopes exist as discrete modules with no pre-assumed connection between them. Every routing decision is explicit, made by the user with a cable. The panel of a modular is a map of potential, not a workflow. It asks a different question — not how do I play this? but what should this even be? — and that question takes longer to answer. The music made on modulars in the 1960s and early 1970s, from Wendy Carlos's studio sessions to Morton Subotnick's tape compositions, reflects the time that question demanded.
The Menu Is a Burial
When digital synthesis arrived, panel space became a problem. FM synthesis on the DX7 offered thirty-two algorithms, six operators each with six envelope stages, a feedback amount, output level and keyboard scaling — more parameters per voice than any affordable panel could accommodate one-knob-per-function. Yamaha's answer was membrane buttons and a small LCD: a single data entry slider governed whatever parameter had most recently been selected from a list. Every parameter existed, but almost none were directly accessible. You navigated to them.
This was a radically different argument. The DX7's panel said: the complexity is too great to expose. Trust the preset. When you do want to edit, commit to a menu and work through it deliberately. The workflow it rewarded was not real-time hands-on performance but careful, seated programming — or acceptance of factory patches. Virtually every DX7 ever sold spent most of its life running unedited presets precisely because the panel made editing feel laborious. The instrument's character — those electric pianos, brass stabs, vibraphone tones — was in large part the character of the sounds that came with it, because the panel discouraged replacement.
The implicit argument of menu-driven design is that depth matters more than access. Whether that trade-off is acceptable depends entirely on how you work. Keyboard players who wanted to call up a sound and perform were well served. Sound designers who wanted to sculpt in real time were not, and they knew it immediately when they touched the instrument.
Layout as Priority
Beyond the one-knob question, layout encodes hierarchy. On a Roland Juno-106, the DCO, filter and VCA controls run in a row across the top of the panel in signal-flow order — left to right, source to output. The chorus switch sits separately at the right edge, almost as an afterthought, because Roland's engineers considered it an effect rather than a core voice parameter. Players who found it understood immediately that the chorus was not optional. The panel's marginalization of it was quietly incorrect.
- Minimoog: no patch pointsimmediacy traded for reconfigurability
- DX7: no direct parameter accesscomplexity buried behind menus
- TR-808: no bass drum tuning knobconstraint became the sound
- TB-303: binary accentbluntness became the aesthetic of acid house
Contrast this with the Oberheim OB-Xa, where voice allocation controls and the polyphonic unison mode occupied prominent real estate — because Oberheim had decided that the way voices spread across the keyboard was musically significant enough to be immediately addressable. The OB-Xa's panel said: you will think about polyphonic voicing. The Juno's panel said: you will think about the filter. Both were right about what made each instrument distinctive; the difference was in what they promoted and what they minimized.
The Sequential Circuits Prophet-5 made yet another argument: that a synthesiser should feel like a professional instrument in the way a studio console did, with a clear left-to-right program and tactile, well-spaced controls that communicated solidity. The Prophet-5's panel was expensive to manufacture; the controls were chosen partly for feel. This was a claim about who the player was — a working musician who deserved a serious tool — as much as about synthesis architecture. The physical quality of the panel was an argument about status.
The Knob That Isn't There
Absence is also an argument. The Roland TR-808 gave its bass drum no tuning control at all — only level, tone and decay, each with a limited range. That constraint was not an aesthetic decision; it was a cost decision. But the fixed relationships between components in that bass drum circuit meant the sound bent in a specific way when pushed, and the absence of more controls meant producers worked with that sound rather than around it. The panel's sparseness was the sound. Every Roland TR-808 track made through the 1980s and into the 1990s reflects a panel that chose not to provide options.
The same logic governed the Roland TB-303's front panel, which gave the user accent and slide but no per-step velocity editing in any articulate sense. Accent was binary: on or off, at a fixed amount. The sequencer's panel made accent a blunt instrument, and the music that followed — acid house, and everything downstream of it — was built on exactly that bluntness. If the 303 had offered fine-grained velocity control, the accent would have merged into the mix. The panel's crudeness was the genre's character.
Reading the Instrument Before Playing It
The argument a panel makes shapes what players notice, what they reach for, what they consider adjustable. A musician who learned synthesis on a Minimoog reached first for the filter cutoff because the panel said: this is the most important thing. A musician who learned on a DX7 reached for a preset list because the panel said: the parameters are too many to navigate casually. Neither was wrong; they were following the instrument's own instructions.
This is why panel design is not cosmetic. It is the instrument's theory of itself, its implicit answer to the question of how music is made. The circuits determine what is possible; the panel determines what is likely. And what is likely, repeated across thousands of users and millions of sessions, determines what a decade sounds like. The layout of controls is never just ergonomics. It is argument, encoded in metal and ink, made audible over time.
